High Speed Video & 3D Spatial Tracking

High Speed Video & 3D Spatial Tracking

FOR MANY APPLICATIONS

Video Analysis as a Customized Service

MSI performs high-speed video acquisition and analysis as a service and develops custom monitoring and analysis systems for a variety of applications.

Enable Motion Magnification and Other Specific Capabilities

Various_full

Motion Magnification – see VibVue®

Pinpoint the root cause of the vibration or dynamic problems costing you time and money.

Learn More About VibVue
Product dev-2

Monitor Blade Vibration and Determine Natural Frequencies

Measure and characterize blade vibration for a better understanding of stress and fatigue.

stretch

Track Material Deformation

Observe and quantify surface changes over time to determine dynamic response of materials.

particle dispersion

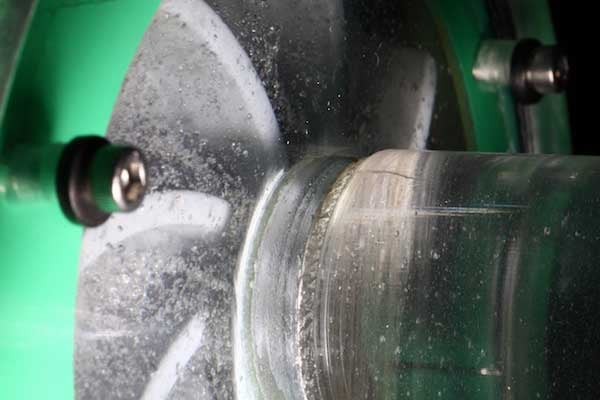

Observe Fluid Flow Paths and Particle Dispersion

Understand the behavior and impact of flow phenomena like cavitation.

flight path

Quantifying Flight Path Characteristics

Precisely locate high-speed objects optically.

Capture

Capturing Lethal and Non-lethal Munition Impacts

Comprehensively characterize multiple objects moving rapidly.

CUSTOM SOLUTIONS TO MEET YOUR REQUIREMENTS

MSI High-Speed Video

Product Development_High Speed Video 3D Spatial Tracking and Services_Field Testing and Troubleshooting_Monitor

High-speed video enables us to see and understand physical results in many applications that were previously invisible to us.

Various

High-speed video equipment and the training to use it are a specialist capability that is usually more beneficial to hire than buy.

data analysis

Add data analysis to characterize objects that previously moved too fast to understand and comprehend.



REAL-WORLD EXAMPLES AND CASE STUDIES

MSI In Action

Case Study

Solids Handling Pump Repetitive Failure of Bearing and Seal

An engineering construction firm needed help in determining the root cause for the repetitive pump bearing and seal failures of a solids handling pump and to provide a solution to eliminate the issue.

Case Study

Design Assessment Mitigates Risk

A design assessment was carried out in an effort to prevent potential premature bladed disk and impeller fatigue failures of three newly installed critical compressor trains.

Case Study

Development of a Prototype Vacuum Blower

A major aerospace equipment supplier/manufacturer needed to design and prototype an FAA-approved vacuum generator for use on commercial aircraft.
