From Design Point Definition to 3D CAD in Minutes

Changing The Way Turbomachinery Design Is Done

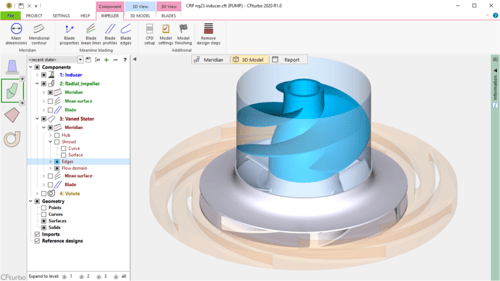

CFturbo screenshot 1CFturbo is an interactive and user-friendly turbomachinery design software solution. With CFturbo, you can create completely new geometries, as well as modify existing designs. Reverse engineering is supported.

CFturbo guides the user step-by-step through the complete design process of a turbomachine. A first draft can be generated automatically, and in the subsequent design process, the user has control over every detail.

Customers can purchase CFturbo to design and predict efficient turbomachinery, with maintenance, support and training from MSI simulation experts.

About MSI_users

User-Friendly

Turbomachinery design is complex, but CFturbo makes it easy. Through its unrivaled, intuitive, and user-friendly design process, CFturbo software empowers every user.

noun_change_1766493

Workflow

CFturbo can be seamlessly integrated into any product development environment, including 3D CAD, CFD, FEA, and optimization software that you are already familiar with.

noun_test_2049696

Interfaces

To export CFturbo models, direct interfaces to all major simulation codes are available, allowing the user to customize their development tools.

Analysis_Design Assessment_support

Start to Finish

CFturbo allows experienced and new users alike to go from a design point to a 3D CAD model, ready for what comes next in your development process.

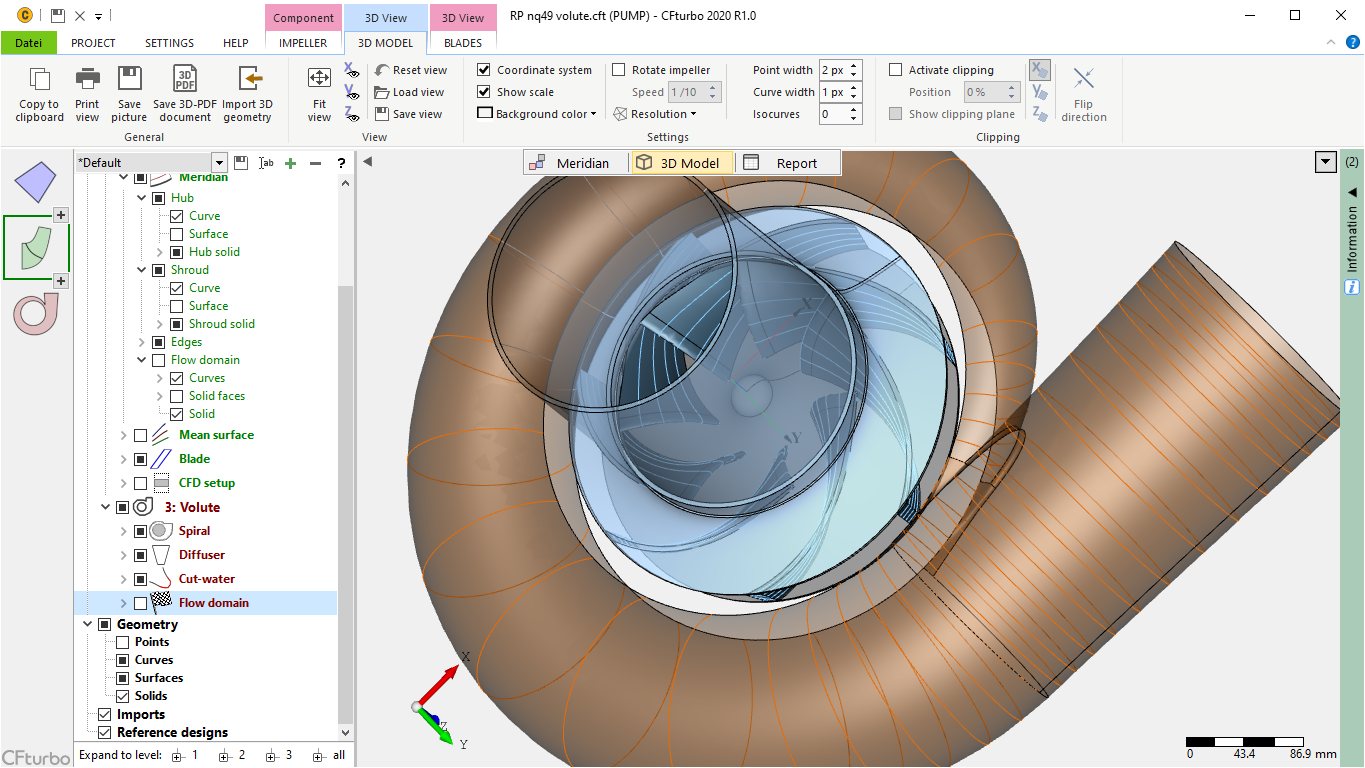

CFturbo screenshot 2

3D CAD Model

noun_enlarge_2205633

Rotate, move, and zoom the 3D model

Analysis >_FEA

Configurable, detailed views

noun_change_1766493

Export and import 3D CAD model

Parametric Geometry

noun_channel_2448906

Parameters of all design steps available

noun_portability_1642630

Parameters can be exported separately

noun_Sliders_99635

Range limits for parameter variables can be defined

noun_change_1766493

Seamless integration for design exploration or optimization into STAR-CCM+

Learn More

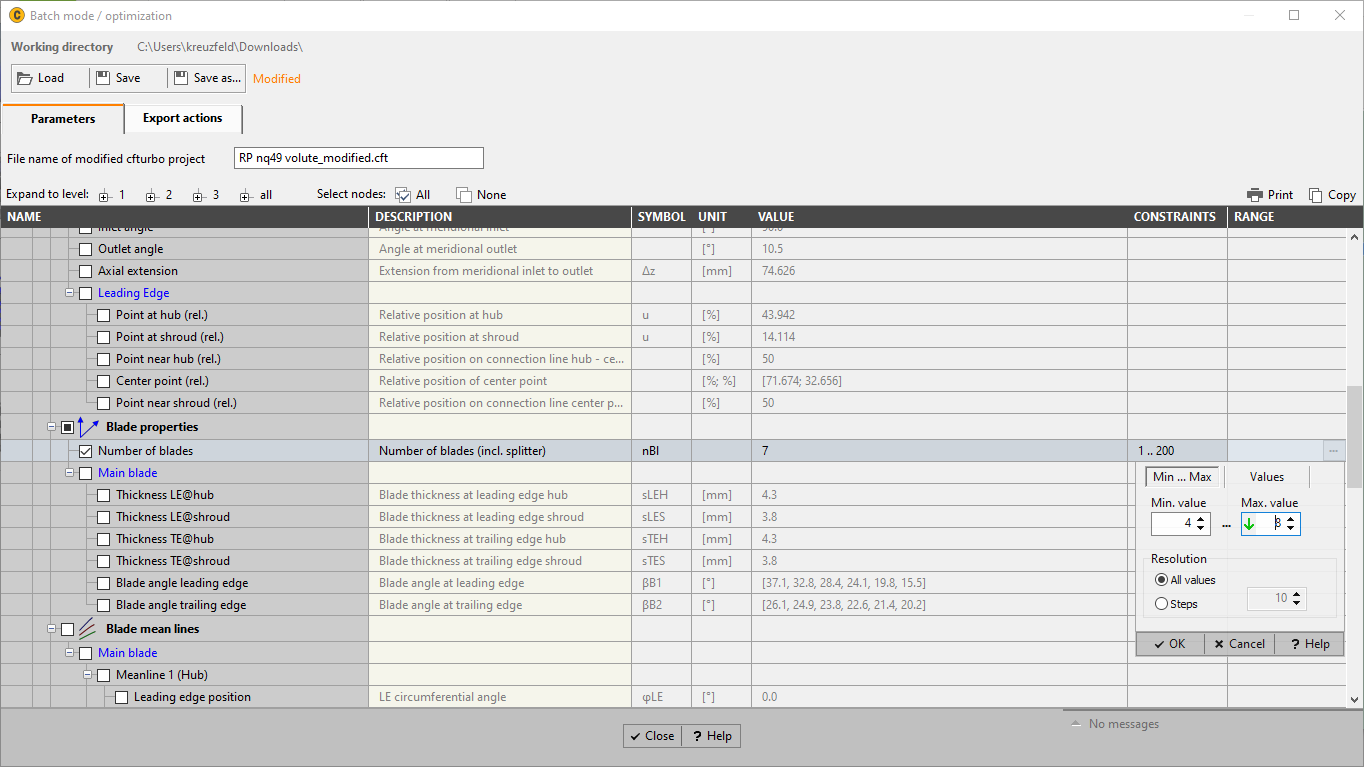

CFturbo screenshot 3

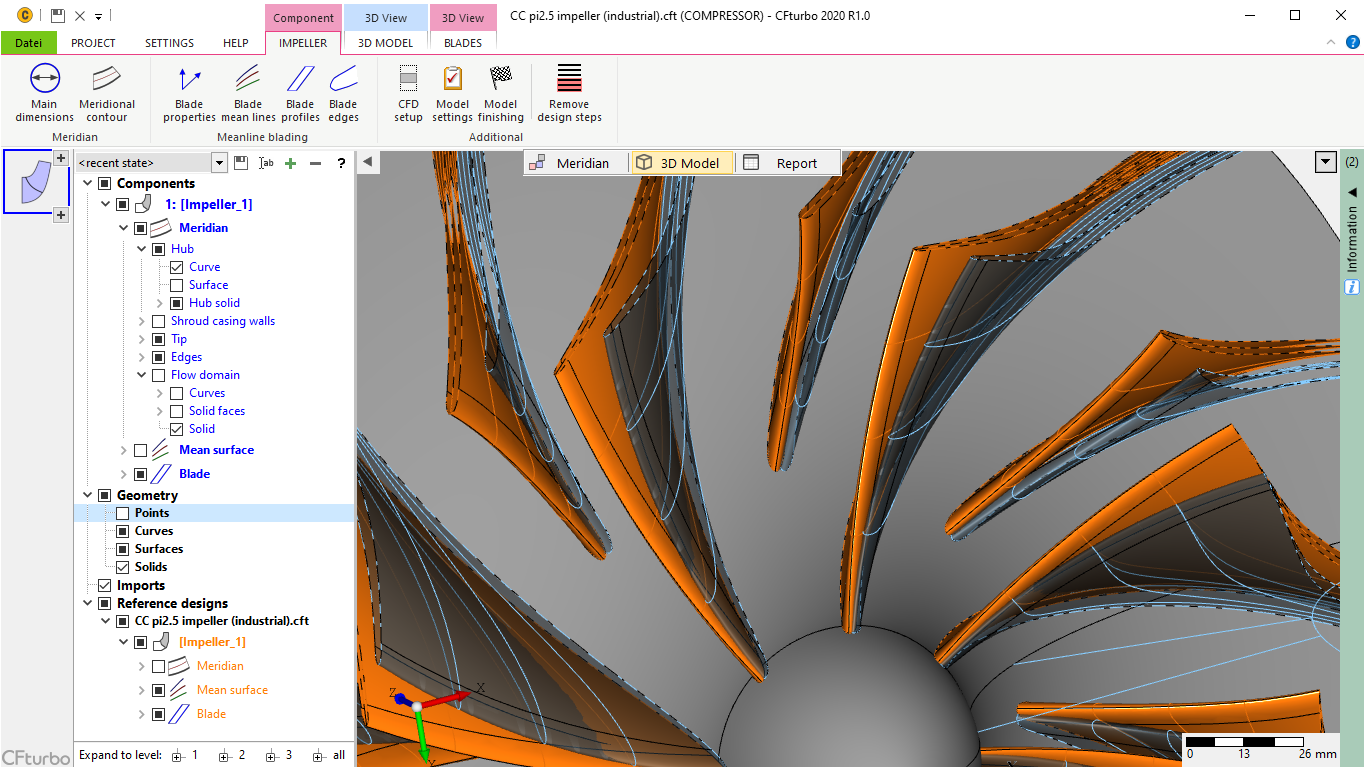

CFturbo screenshot 4

Get a head start

Reverse Engineering

noun_change_1766493

Import and replicate existing turbomachinery components

noun_portability_1642630

Import existing meridional curves with automatic conversion to Bezier splines

noun_Turbine_411018

Design blades based on given blade angles at leading and trailing edges, or import meanlines if available

noun_Turbine_1807601

Import blade thickness profiles, airfoils, and hydrofoils

Products_CFturbo and Products _VibVue_enlarge

Compare imported model data with reverse engineered CFturbo file

CFturbo SMP

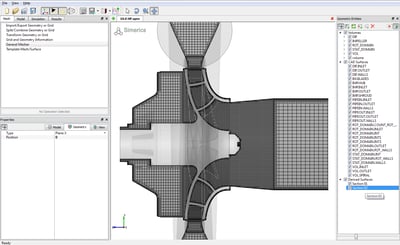

CFturbo screenshot 5CFturbo SMP is an accurate, fast, user-friendly and affordable solution for flow simulation, based on Simerics MP. It can be used to compute performance curves, efficiency, torque, and shaft power for pumps, blowers, fans, compressors and turbines.

The base code of CFturbo SMP can be extended by a number if options, such as multiphase flows, cavitation, radiation, and fluid-structure coupling.

And, CFturbo SMP is affordable. Prices are competitive compared to other commercial CFD codes. Contact us today to learn more.

noun_Target_1005058

Accurate

Its meshing technology and fast 3D Navier Stokes solver allow transient simulations which ensure accurate predictions.

noun_high speed_868192

Fast

Binary tree meshing, state-of-the-art solver technology, and parallel processing give quick solutions - even on laptops and desktop computers.

About MSI_users

User-friendly

The user interface is intuitive, while the most important settings are already pre-configured by CFturbo.

Learn more about CFturbo or see a demo today
