MSI performs laboratory methods of testing fans for certified aerodynamic performance rating.  Below are examples and a description of our test facility capabilities.

  • Ability to meet guidelines per ANSI/AMCA 210-07 & ANSI/ASHRAE 51-07
  • Drive system/motor up to 150 HP available
  • Variable frequency drive system to accommodate various fan speeds
  • Remote operated throttling device to obtain multiple speed performance curves
  • Facility can accommodate test rigs over 40 feet
  • Up to a 300 channel LabView data acquisition system
  • Direct torque measurement radio frequency telemetry system using strain gauges
  • Full suite of pressure and temperature transducers including Bentley Nevada proximity probes for rotor axial and radial vibration monitoring system
  • Pressure sensing pitot tubes to supplement AMCA standard for low static head fan applications
  • Capability to obtain circumferential and axial velocity components
  • Real-time continuous vibration monitoring employing accelerometers.



FanRig6

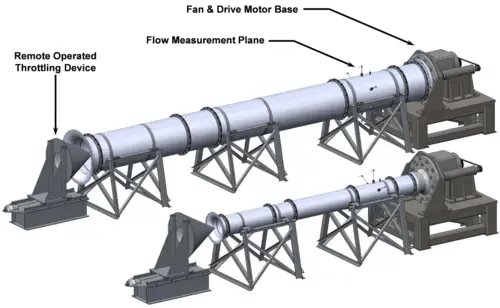

CAD models of an AMCA standard test set-up shown side-by-side to illustrate relative size
(24-inch axial-flow fan above, 13-inch mixed-flow fan below).



FanRig4-1024x644

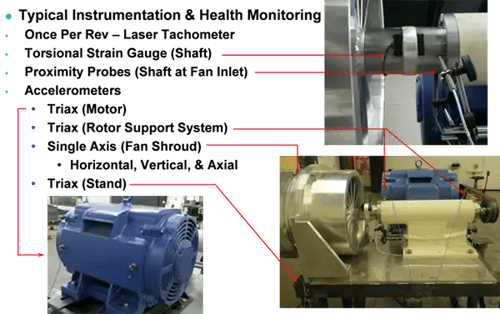

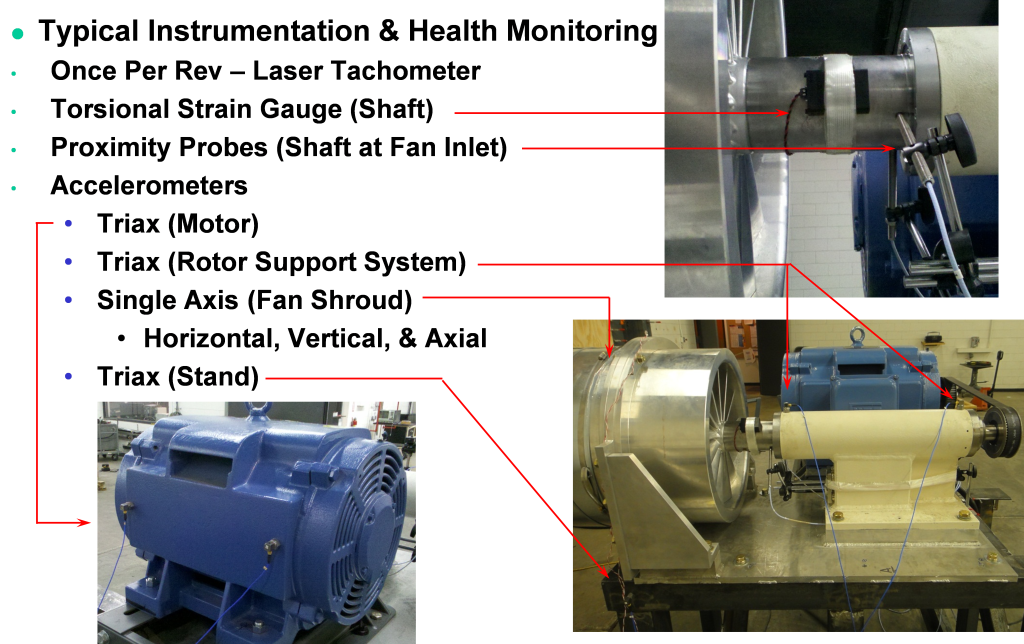

Standard Instrumentation and Health Monitoring Approach for Fan Testing.



FanRig7-1024x577

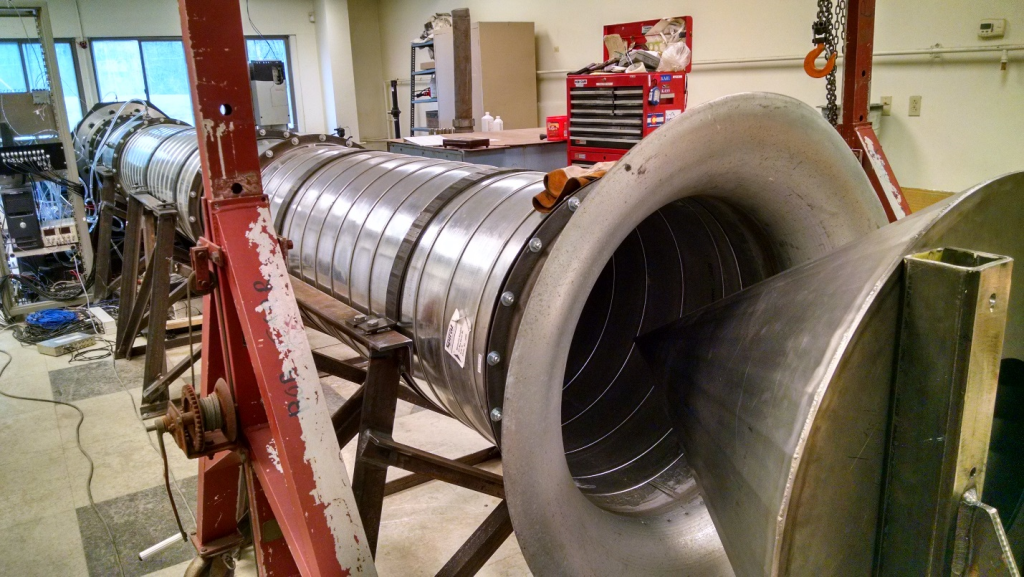

View of fully installed test rig with remote operated throttling device.



FanRig1-1024x631

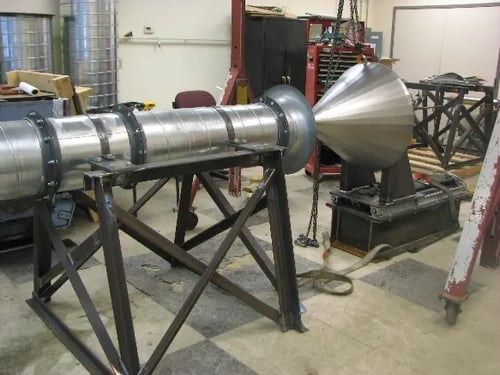

View Depicting Remote Operated Throttling Device.



FanRig8-1024x577

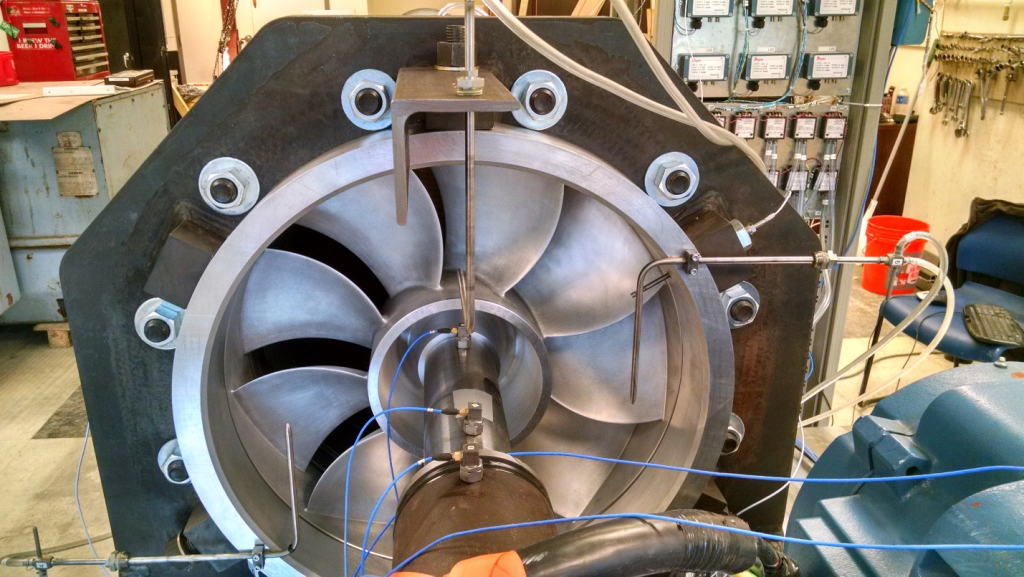

View of fan discharge showing pressure sensing pitot tubes to supplement standard for low static head fan applications.



FanRig5-1024x577

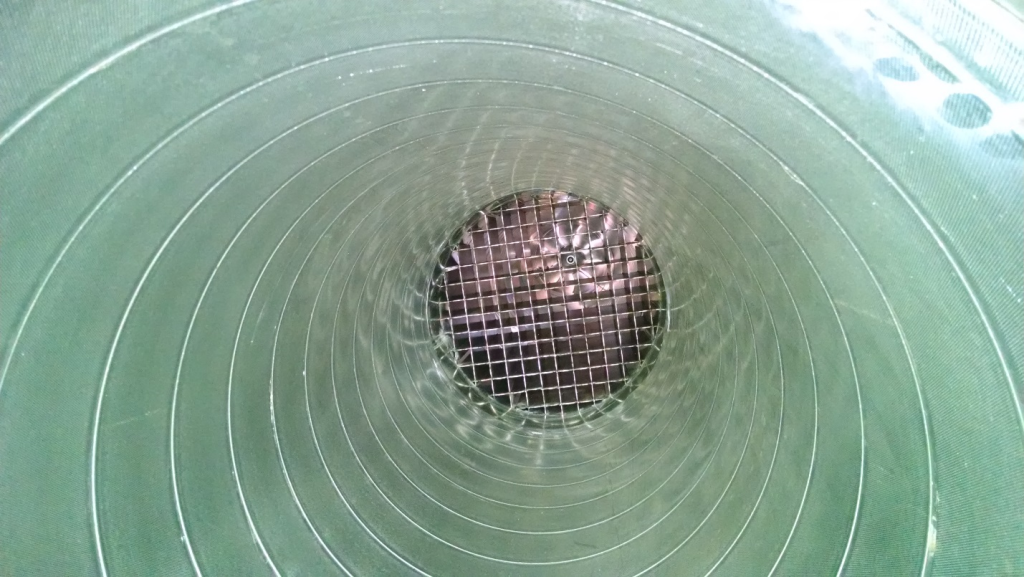

View Depicting Flow Conditioner.



FanRig2-960x1024

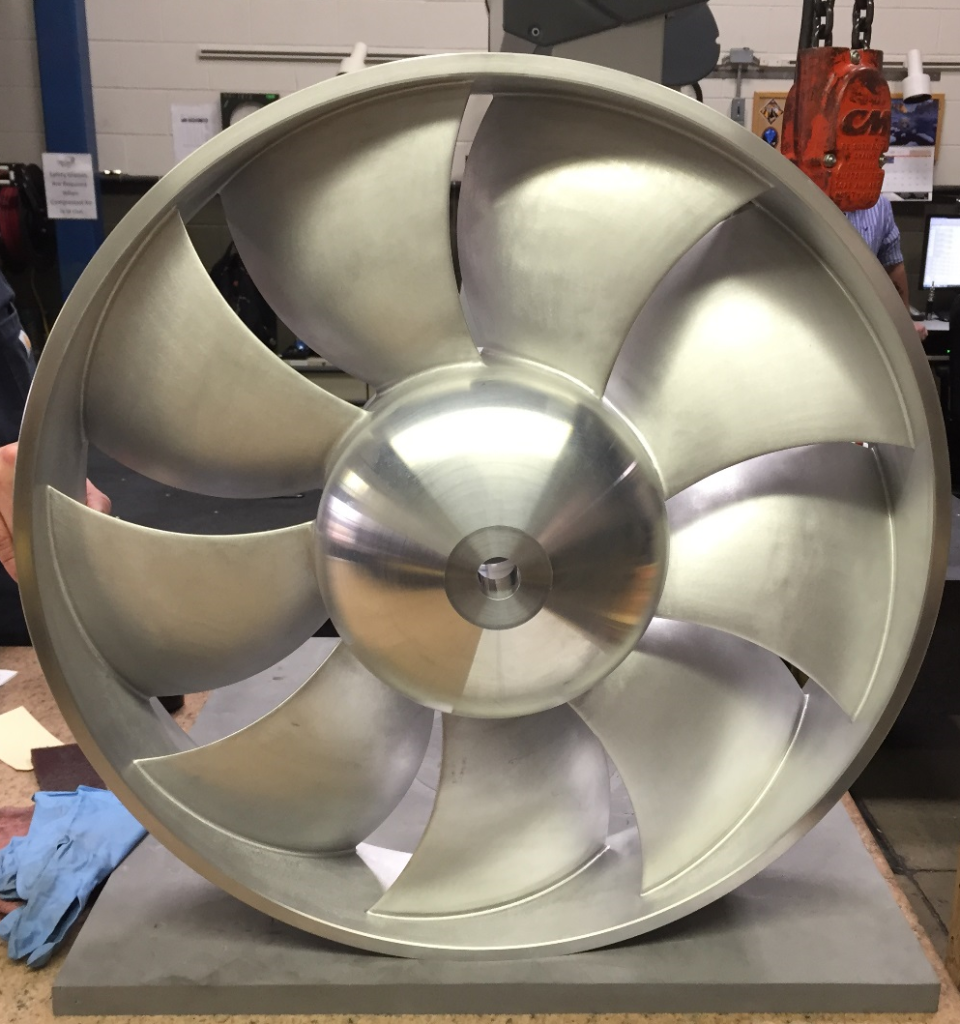

View of a 24” shrouded axial-flow fan integrally machined from Aluminum billet.

FanRig3-1024x373

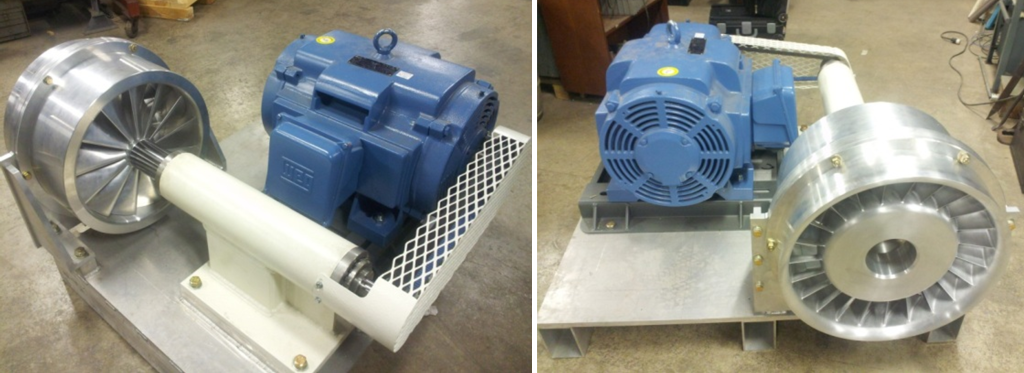

View of an 18” 6000 RPM Low Noise Fan Sub-assembly Installed on a Drive Motor Base.
