How many buckets should a Pelton hydro turbine have?  That was the question posed by the customer.  MSI created a computational fluid dynamics (CFD) model to determine the optimal torque and power output considering two different configurations.

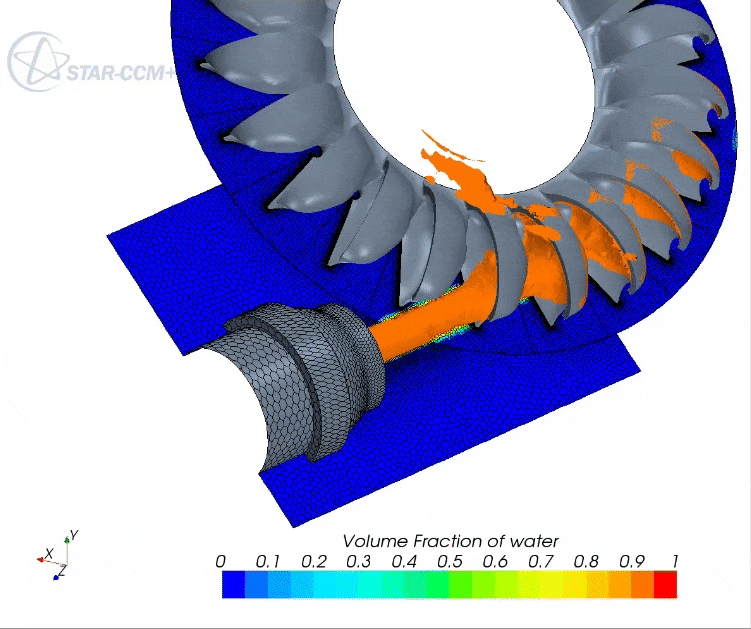

Pelton-hydro-turbine-CFD-300x251

Pelton-hydro-turbine-CFD-300x251

Animation.

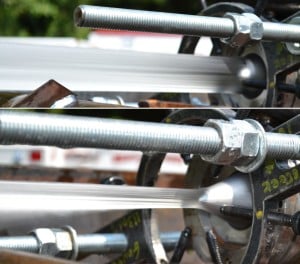

Pelton-hydro-turbine-nozzle-testing-300x264

Varying nozzle flows of the Pelton hydro turbine modeled.
