The construction company of a natural gas powered electric generating facility was trying to understand why they were measuring a significant flow difference between field and factory test pump curves on the closed cooling water pump skid.  MSI was contracted to diagnose the flow difference and perform a vibration inspection.

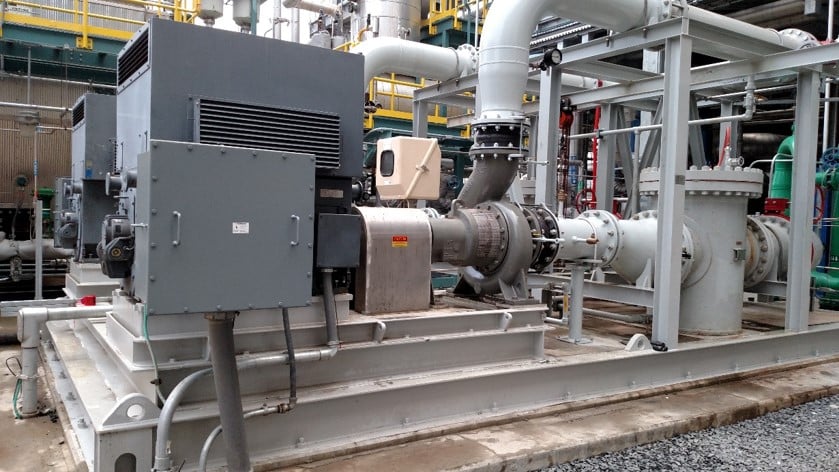

glycol_pump

  • Problem Statement (Challenge)
    • What (type of machine): Natural Gas Powered Electric Generating Facility Overhung Bottom Suction Centrifugal Cooling Water Glycol Pumps
    • Where (State/ Country): New Jersey
    • Why (problem/reason): The construction company was trying to understand why they were measuring a significant flow difference between field and factory test pump curves on the closed cooling water pump skid.
  • Work Performed
  • Results/ Solution
    • Findings: The flow differential was attributed to the ultrasonic flowmeter’s inability to detect the amount of air in the fluid, which affects the reading.  The plant conducted their own air entrainment test which indicated a large amount of air was present in the fluid.  The flow traverse test revealed that the flow profile entering the pump was skewed from top to bottom, which was not addressed by the existing flow straightener.  Initial vibration readings indicated the pump vibrations were above allowable limits.  Cavitation levels measured were considered damaging.  Lastly, there was a pump bearing housing structural natural frequency within the operating speed range that was causing the high vibrations.
    • Impact: The findings suggested that modifications need to be implemented on the pump bearing tower to shift a natural frequency out of the running speed excitation range.  The suction piping design needed to be modified in order to eliminate the skewed velocity profile contributing to the cavitation.  A Computational Fluid Dynamic Analysis (CFD) calibrated to the data collected on site to develop a solution to the flow problem with a greater chance of success upon implementation was recommended to the customer.  The suggested modifications should help eliminate unscheduled outages to replace pump bearings and/or pump impellers.

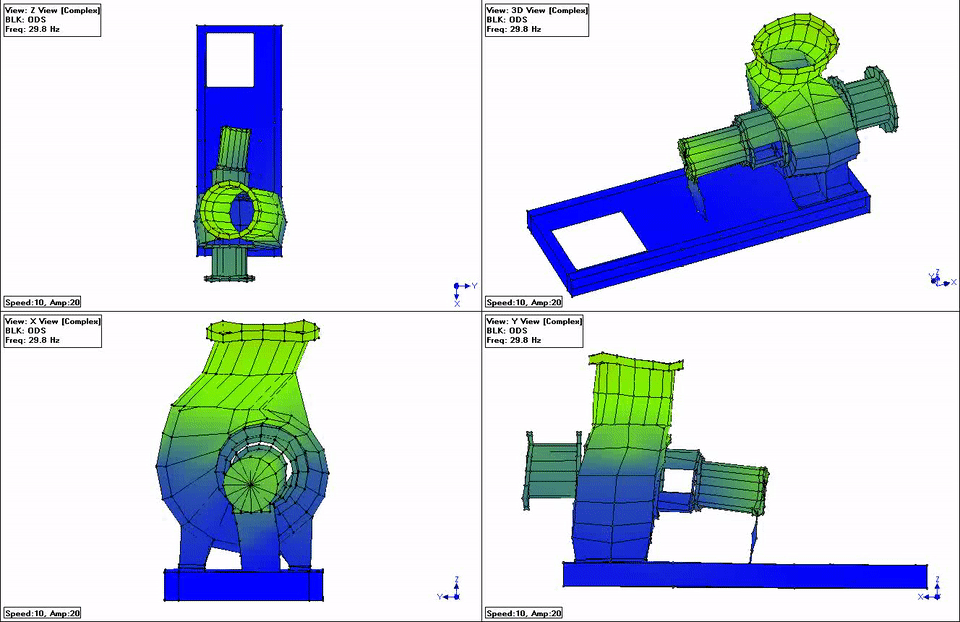

ODS_glycol-pump-300x194

Animation.

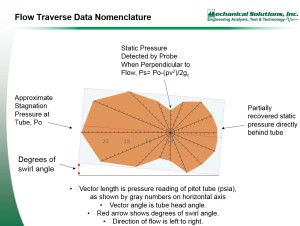

flow_traverse1-300x226

Explanation of flow traverse results.

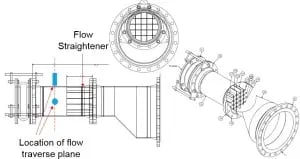

flow_straightener-300x159

Image of current system flow straightener.
