The Civil Engineers at a major Architect/Engineering firm used MSI’s pump engineering experience and modern methodology to determine the effect of the station foundation on the structural natural frequencies of a dry-pit non-clog vertical pump which was due for replacement. Pump OEMs will understandably limit their own analysis efforts to the scope of their supply, and may not include piping effects and/or will assume the floor is infinitely stiff (it isn't). While leaving out system effects may be fine for a rotordynamics analysis, it makes a structural analysis misleading at best. The goal of a properly performed structural design assessment is to ensure that the pump and associated components will not vibrate based on how the pump, motor, and associated system elements will be installed and behave in the system at various performance conditions.

In this case, by determining the effect of the foundation on the natural frequencies of the currently installed pumps, the importance of including the flooring/foundation in future finite element analysis (FEA) analysis predictions for the new pumps could be quantified. The Architect/Engineering firm could then be sure to state in their specification that the station foundation should be modeled explicitly in any future FEA calculations.

Based on MSI engineers' FEA models of the full pump assembly, including the station foundation modeled in full 3D, it was predicted that the flexibility of the flooring/foundation could influence the 1st bending “global rocking” modes up to 17.6% and the 2nd bending “C-shaped” modes up to 32.1%. For this reason, MSI pump engineers highly recommended that the Architect/Engineering firm include language in their specification that a detailed model of the station foundation should be included in any structural natural frequency calculations of the future pump system.

The following table is a comparison of baseline modes and “infinitely stiff floor” modes of a dry-pit non-clog vertical pump assembly in order to evaluate the effects of the flooring/foundation.

Dry-Pit Non-Clog Vertical Pump Structural Modes: Assessment of Foundation Effects
Pump Speed (RPM):  1070-1170
Description Baseline FEA Predicted Natural Frequency Natural Frequency with Infinitely Stiff Floor Percent Influence of Foundation
Hz CPM Hz CPM %
1st Bending "Global Rocking" Mode Perpendicular 16.9 1,014 20.5 1,230 17.6
1st Bending "Global Rocking" Mode Parallel 18.4 1,104 19.3 1,158 4.66
2nd Bending "C-Shaped" Mode Perpendicular 29.4 1,764 43.3 2,598 32.1
2nd Bending "C-Shaped" Mode Parallel 30.8 1,848 38.3 2,298 19.6

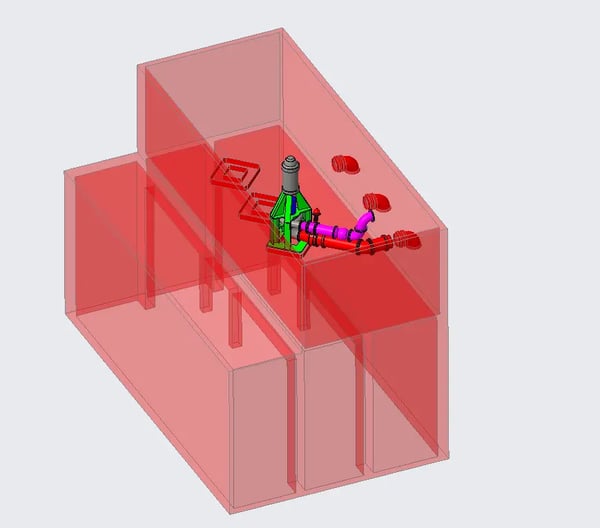

The following image is a Creo 4.0 solid model of the dry-pit non-clog vertical pump assembly used to match the structural natural frequencies measured by MSI field engineers. It should be noted that to obtain a good match with the field measured structural natural frequencies, it was necessary to include the full station foundation flooring.

Assess Foundation Effects on Current Solids Handling Pumps1

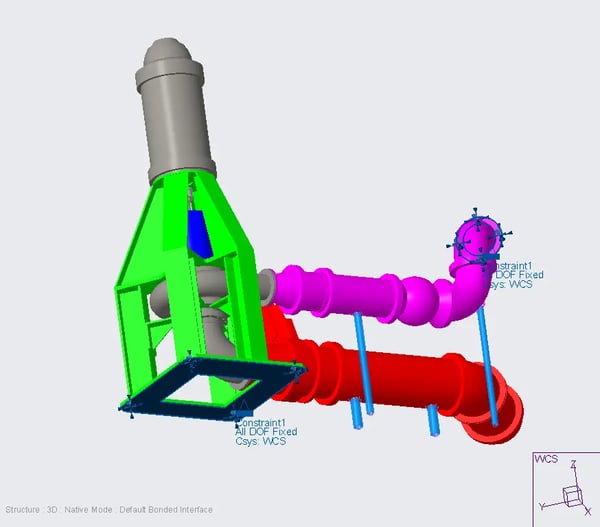

For comparison purposes, what follows is a Creo 4.0 solid model of the dry-pit non-clog vertical pump assembly used to assess the effects of the station flooring/foundation on the pump structural natural frequencies. It should be noted that these boundary conditions are utilized only for comparison purposes, and that the correct configuration when performing a pump system structural natural frequency analysis is shown in the first image with a complete model of the surrounding system, including the foundation.

Assess Foundation Effects on Current Solids Handling Pumps2

Let's take a more detailed look at the 2nd Bending "C-Shaped" Mode, where the shift in natural frequency was significant.  The following animation compares the model of the 43 Hz forced response of the infinitely stiff floor (i.e, no foundation) with the correctly modeled system, including the foundation.

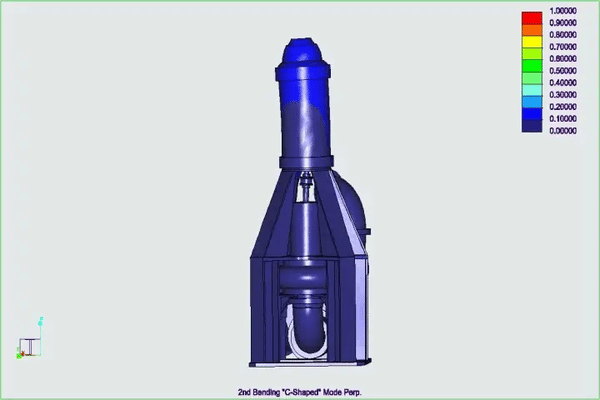

Assess Foundation Effects on Existing Solids Handling Pumps2nd Bending "C-Shaped" Mode response at 43 Hz with infinitely stiff floor

Forced response at 43 Hz for model including foundation showing minimal response

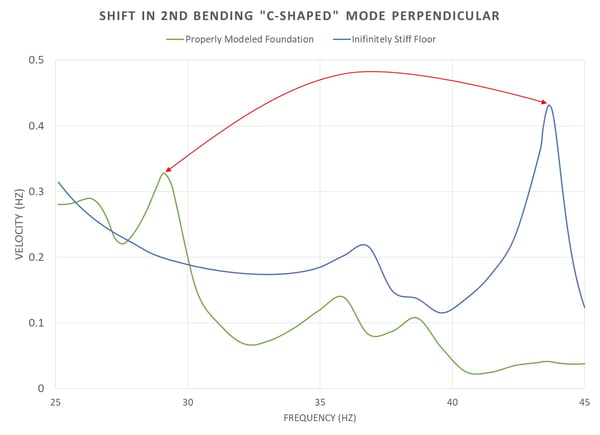

The following chart demonstrates the shift in the 2nd bending mode from 43 Hz to 29 Hz with a properly modeled system, including the foundation.

Assess Foundation Effects on Current Solids Handling Pumps

Finally, the properly modeled forced response at 29.4 Hz is shown, which was not evident using the infinitely stiff floor assumption.

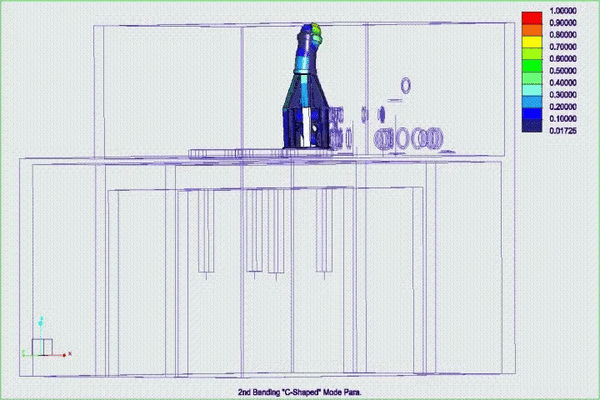

Assess Piping Effects on Existing Solids Handling Pumps2nd Bending "C-Shaped" Mode response at 29 Hz with foundation included
