Interest is increasing in the abundance of low head and ultra-low head hydropower opportunities.  Given the limited power available from a single turbine in these circumstances, MSI was asked to model and analyze the performance of several hydro turbines operating in parallel.

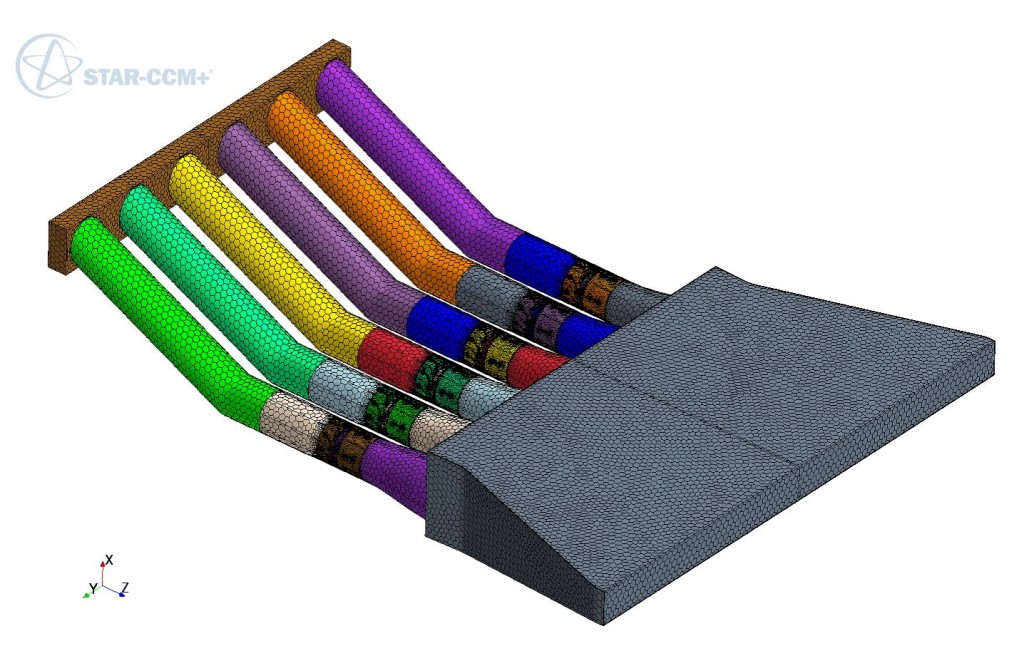

Model-of-multiple-hydroturbines-in-parallel-array-1024x651

MSI created an extensive model to determine interactions between several hydro turbines running in parallel.



A complete computational fluid dynamics (CFD) model of over 19 million vertices was created to accurately determine if there was any interaction between the hydro turbines.  MSI’s intensive computing resources were able to successfully run this substantial model and provide engineers with reliable results.

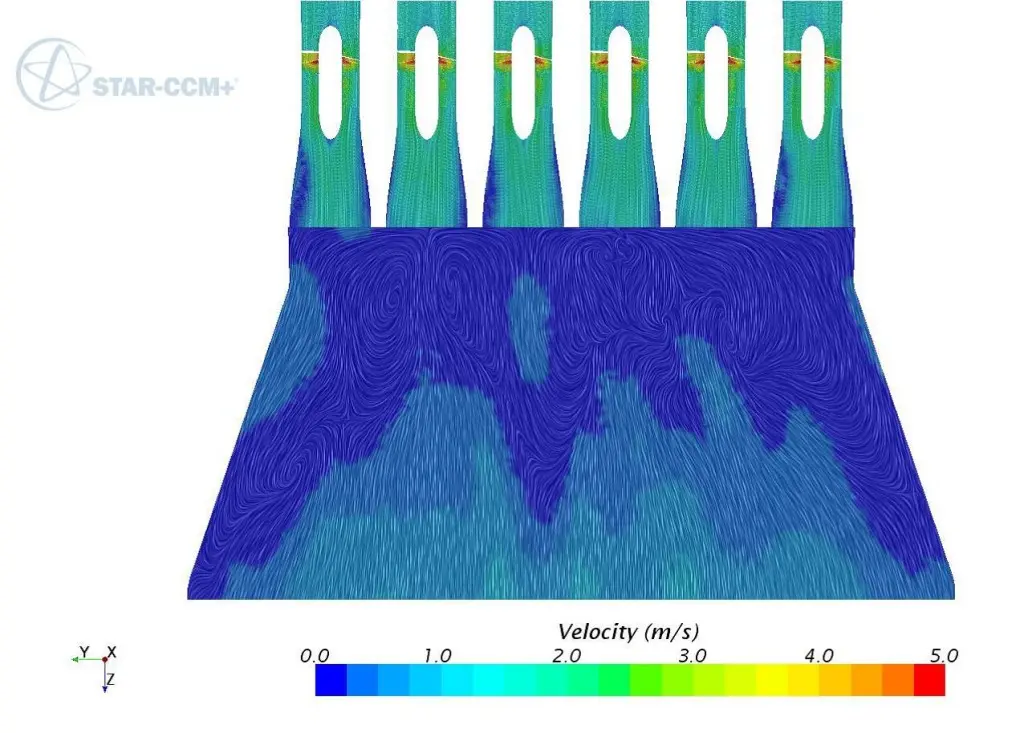

CFD-results-of-multiple-hydroturbines-in-parallel-array-1024x733

The CFD model indicated significant power output variation among the hydro turbines.



Using the model, MSI was able to determine a variation of over 5% in power output turbine-to-turbine, and a 10% spread in turbine efficiency, with potential for optimization with tailrace modifications.
